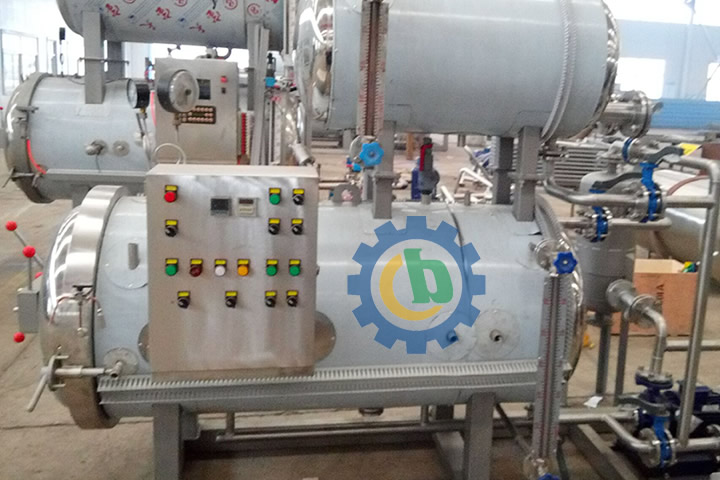

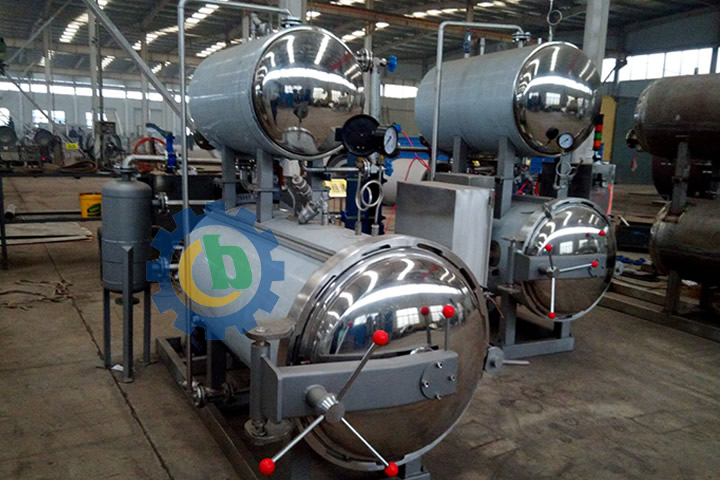

Chili Sauce Hot Water Sterilization Machine

  • Model: BDLH-0715
  • Material: Stainless steel 304
  • Control Type: Fully computer or semi-automatic buttons for choice
  • Pot body thickness: 4mm
  • Inner diameter: 700mm
  • Voltage: 380V,50HZ,3 phase , can be customized

We're here to help:  Easy ways to get the answers you need.

Share With:
  • Specifications

1) Some sterilization water has been preheating in hot water tank in advance (usually heated to temperature of 85 °C to 95 °C as the material filling temperature), the sterilization temperature is high starting point, shorten the time required for sterilization.

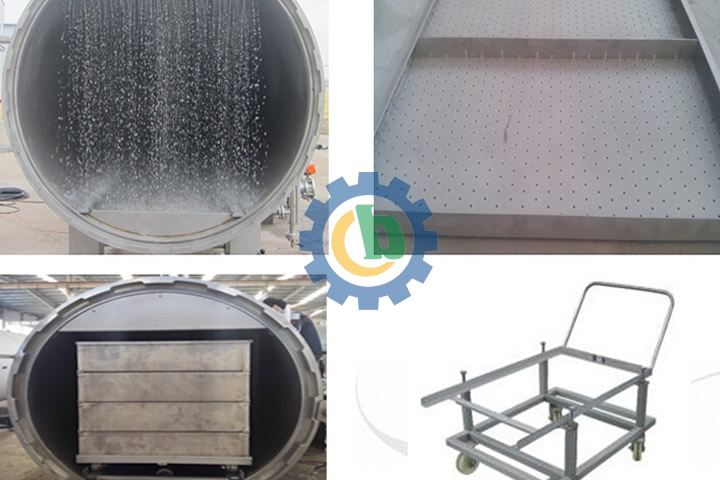

2) through the large flow circulation pump ,will spray water from the top of the sterilization pot to the packaging sterilization, because of the sterilization water preheating in advance, and to be the material filling temperature ,sterilization products almost uniformly, effectively avoid the sterilization temperature fluctuations caused water contact with materials in an instant, avoid packing pressure change caused the packages the rise or flat..

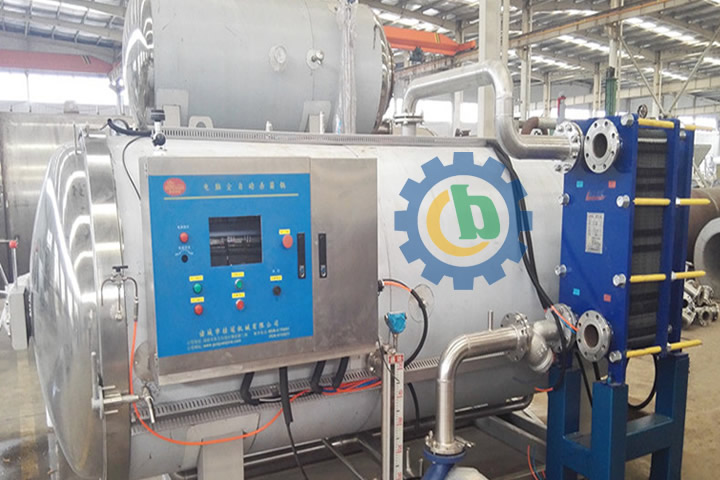

3) high efficiency heat exchanger to reduce steam consumption, fast to the expected sterilization temperature.

4) the indirect heating of indirect cooling, cooling water and process hot water does not contact, avoid the secondary pollution of the food, no water treatment chemicals. High temperature short time sterilization.

Item Specifications
Inner diameter/pot length/thickness/Volume (Sterilization Pot) 700mm /1500mm/4mm /0.68m3
Inner diameter/pot length/thickness/Volume (Steam Generator) 500mm /600mm/4mm /0.15m3
Maximum working pressure/temperature
(Sterilization Pot)
Maximum working pressure/temperature
(Steam Generator)
Total Installed Power Around 25KWElectric heating pipes 12.5kw*2 pcs=12.5kw,
Circulation pump3.0kwcool water pump1.5kw
Voltage 380V,50HZ,3 phase
Pot Material Stainless steel 304
Pot body thickness 4mm
Equipment Occupation 2600mm×1800mm×2700mm
