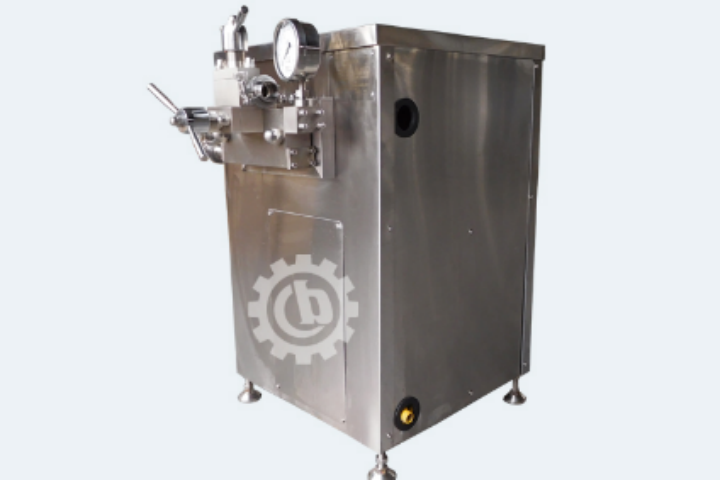

Food Sanitary High Pressure Milk Homogenizer

  • Rated Flow L/H: 500-2000 L/H
  • Working Pressure: 20-60 Mpa
  • Power: 4-45 kW
  • Material: 304 Stainless Steel

We're here to help:  Easy ways to get the answers you need.

   get price
Share With:
  • Specifications
Homogenizer can make the material and liquid refine and mix under the triple action of extrusion and grinding, strong impact and pressure loss expansion. For various dairy beverages such as milk and soy milk, homogenizing under high pressure can refine the fat globules in the dairy liquid and make the products easy to digest and absorb after eating.

Introduction of high pressure homogenizer
pressure through an adjustable current-limiting gap process, the formation of loss of pressure expansion, explosion, shear, combined effect of high-speed collision, the particles and liquid droplets shatter into very small size, while creating an ideal solution or dispersion of emulsion.  Product stability, consistency, mixed, and easy absorption, nutritional value, shelf life, flavor, color, security activities are realized in the homogeneous process.

Application:
It is widely used in food, dairy, beverage, pharmaceutical, fine chemicals and bio-technology and other fields of production, scientific research and technological development.
1.For milk,soybean milk,could make fat globule thin observably,make it easy to assimilate.It is good to increase the edible value.
2.For ice cream,make the liquid fine and loosen and improve internal quality.
3.For emulsion,colloid,juice,serosity,could avoid and decrease the separated layers of liquid material,improve the appearance of liquid material,and make it identical coloury liquid.
4.As transportation pump usage
It will come into high pressure by our machine.Powder will be made by dryness equipment.Our machine is important process of manufactorying powder.

Feature:
1.Noise of transmission is lower than noise of motor. The pointer of pressure meter is steady, and also the range of swing of pointer is less than 2M Pa.
2.The higher the pressure the finer the material the more uniform particle size, 30MPA the following models, mainly for liquid - liquid emulsification.

Product Application:

500L-homogenizer

Food Sanitary High Pressure Milk Homogenizer working video:

High Pressure Milk Homogenizer Technical Parameter:

Homogenizer
Rated Flow L/H Working Pressure: 20Mpa
Max. Pressure:
25Mpa		 Working Pressure: 35Mpa
Max. Pressure:
40Mpa		 Working Pressure: 50Mpa
Max. Pressure:
60Mpa		 Working Pressure: 60Mpa
Max. Pressure:
70Mpa
Power Size Power Size Power Size Power Size
500L/H 4Kw 1010*616
*975		 7.5Kw 1100*676
*1065		 11Kw 1100*770
*1100		 15Kw 1410*850
*1190
1000L/H 7.5Kw 1100*676
*975		 15Kw 1410*850
*1190		 22Kw 1470*960
*1280		 22Kw 1410*850
*1280
1500L/H 11Kw 1100*770
*1100		 22Kw 1410*850
*1280		 37Kw 1605*1200
*1585		 37Kw 1605*1200
*1585
2000L/H 15Kw 1410*850
*1190		 30Kw 1550*1050
*1380		 45Kw 1671*1260
*1420		 45Kw 1671*1260
*1420
Material:304 Stainless Steel
Voltage:380V/50Hz
