Apple Peeler Corer Divider
  • Apple Peeler Corer Divider

Commercial Electric Apple Peeler Corer Divider Apple Peeling Machine

  • Capacity: 500kg/h
  • Apple diameter: 65-110mm
  • Peeling thickness: 1.1-1.3mm(adjustable)
  • Peeling clean rate: more than 95%

We're here to help:  Easy ways to get the answers you need.

Share With:
  • Specifications

Apple Peeling Machine Introduction:

Apple peeling machine is using the mechanical principle of fruit peeling machine, controlled by PLC, can finish the peeling, coring, dividing movement, peeling knife can automatically close to fruit shape according to each apple change, peel thickness is adjustable, thus peeled fruit loss less, high utilization rate of fruit meat.

On the touch screen setting parameters and action, put the apple on the fruit bowl, then the machine can work automatically, one hour can peel apples around 3000 pieces per hour.

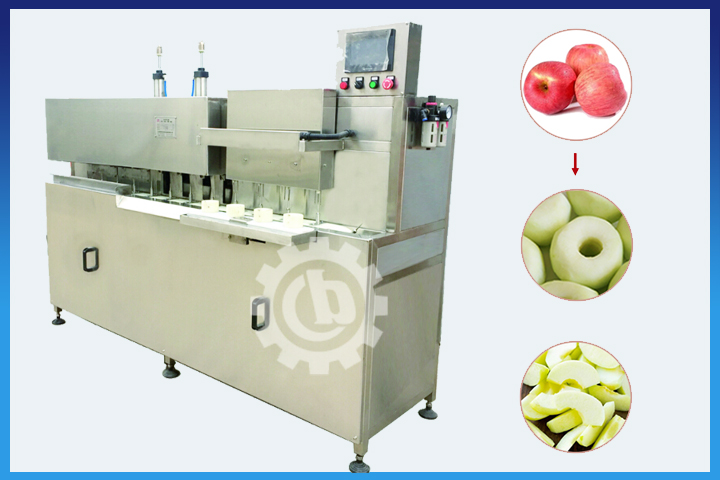

apple-peeler

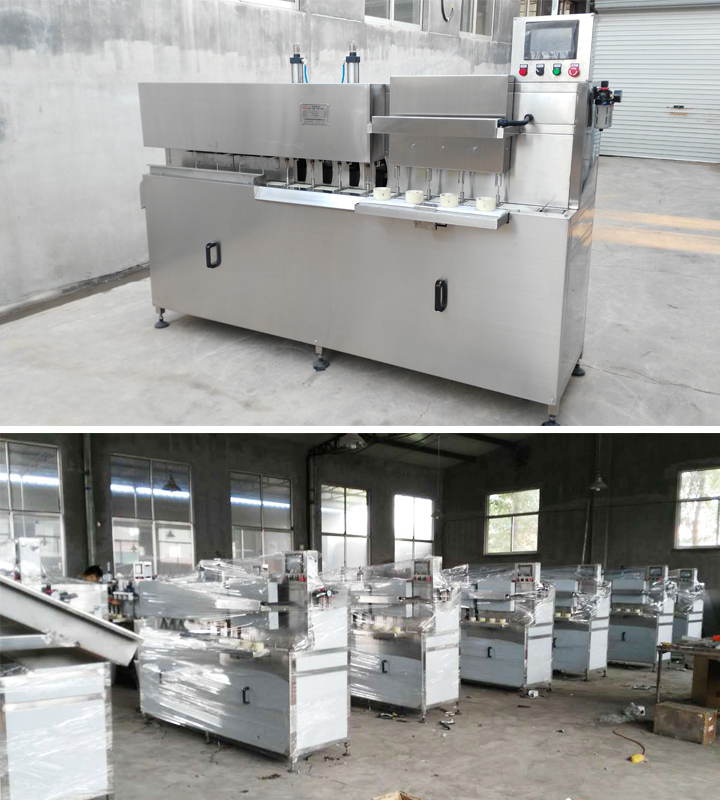

apple-peeler-cutter

Apple Peeler Technique Parameters:


Capacity: 50 pieces/minute(Around 500kg/h)

Peeling thickness: 1.1-1.3mm(adjustable)

Apple diameter:65-110mm

Core remover diameter: 22mm(can customize)

Peeling clean rate: more than 95%

Voltage: 380V,50HZ,3 phase

Power: 1.3KW

Dimension: 2400*820*1680mm

Weight: 380kg

Air capacity: 0.3M3/minute

Divide pieces: according to customer

Machine material: plate is SUS304, square tube is SUS202,lifting knife sets is Aluminum alloy

Pneumatic system: AirTAC, Servo system is in Taiwan Delta,PLC is Japan Mitsubishi
