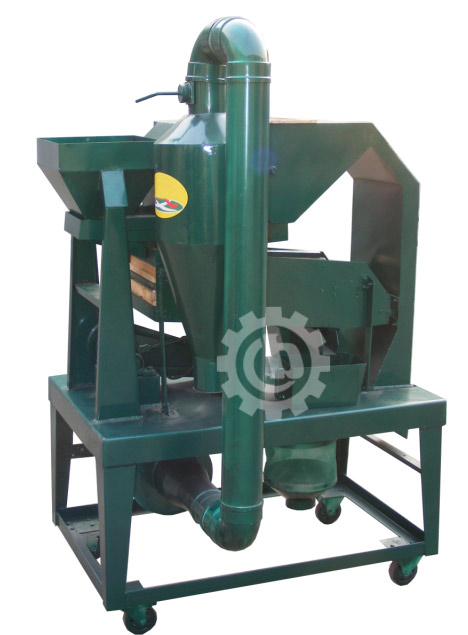

Spice Seeds Cleaning Machine and Grader

  • Model: BXZC-3B
  • Power: 4.25kw
  • Capacity: 300-500kg/h for spice seed

We're here to help:  Easy ways to get the answers you need.

Share With:
  • Specifications

This seed cleaner & grader is used primarily for grain and spice seeds cleaning industry. Such as pepper, cumin , mustard, coriander, etc. It removes coarse and fine impurities from the seeds by sieving. It also grades various products according to size.

Technique Parameters

Model:BXZC-3B

Power: 4.25kw

Size: 4970*1800*2750mm Weight: 1200kg

Capacity: 300-500kg/h for spice seed

Spice Seeds Cleaner and grader Working theory and work flow

Wind separating function depends on the vertical air-recycling unit, it uses aerodynamic properties of grains and the critical speed difference between grains and impurities adjust air flow speed to achieve the separation.

The light impurities are aspirated and collected by the cyclone dust collector, good grains stay and enter main sieving chamber after the wind separation. Normal vibratory sieve chamber consist of two sieve layers (or more) with three discharging outlets (or more) which discharge large impurities small impurities and good (selected) grains.

Due to the size difference of various grains, appropriate sieve mesh selection is crucial to achieve the grading and selecting function within the vibratory sieve chamber.
