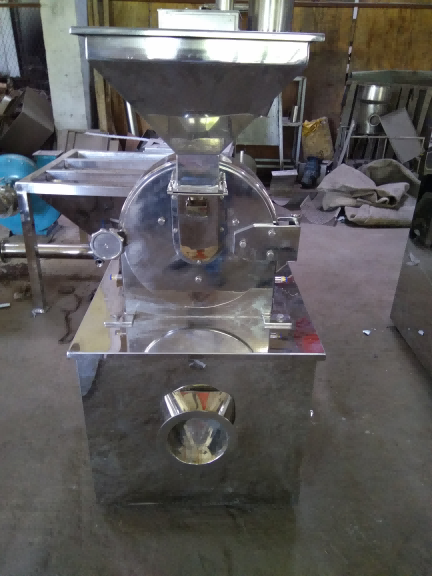

The specification of Grinding machine

2022-11-04

  It is widely used in the crushing of materials in the pharmaceutical, food, chemical and other industries. The fineness is adjusted between 20-120 meshes. It has the advantages of high output, fine particle size, low noise, low energy consumption, simple maintenance, and convenient installation.
working principle:

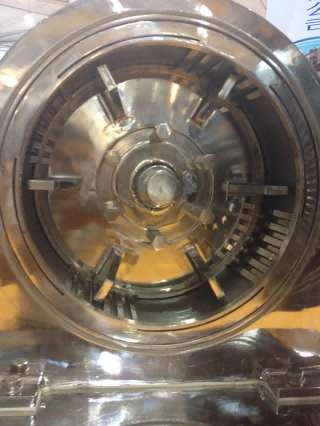

  This machine utilizes the relative movement between the movable toothed plate and the fixed toothed plate to make the material crushed by the impact, friction, shearing and impact of the toothed plate against each other. The crushing fineness of the material can be adjusted by replacing the screens with different apertures. The whole machine is designed according to GMP standard and made of stainless steel. The inner wall of the casing has been finished to achieve a smooth surface, which has changed the phenomenon of rough inner wall and accumulated powder of the previous model, so that the production of medicine, food, and chemical industry is more in line with the standard. The machine has simple structure, low energy consumption and easy cleaning. It is the ideal crushing equipment at present.
  Features:
                     1. Strong crushing ability, low energy consumption and relatively small product fineness.
                     2. The crushing space is large, and the high wind pressure generated by the rotation of the movable cutter head can not only improve the production capacity, reduce the phenomenon of over crushing, but also effectively avoid the deposition and blockage of the screen during the crushing process. The high wind pressure can also take away the heat generated in the crushing chamber to the greatest extent.
                    3. The screen is easy to install, has a long service life, and has reliable positioning, all of which are plug-in.
                    4. The equipment bearing seat, machine cavity (optional) and water cooling device can effectively prevent the crushing cavity from heating up too fast and too high, and it is suitable for crushing some heat-sensitive materials, including those materials that will become soft or even melted at higher temperatures.
